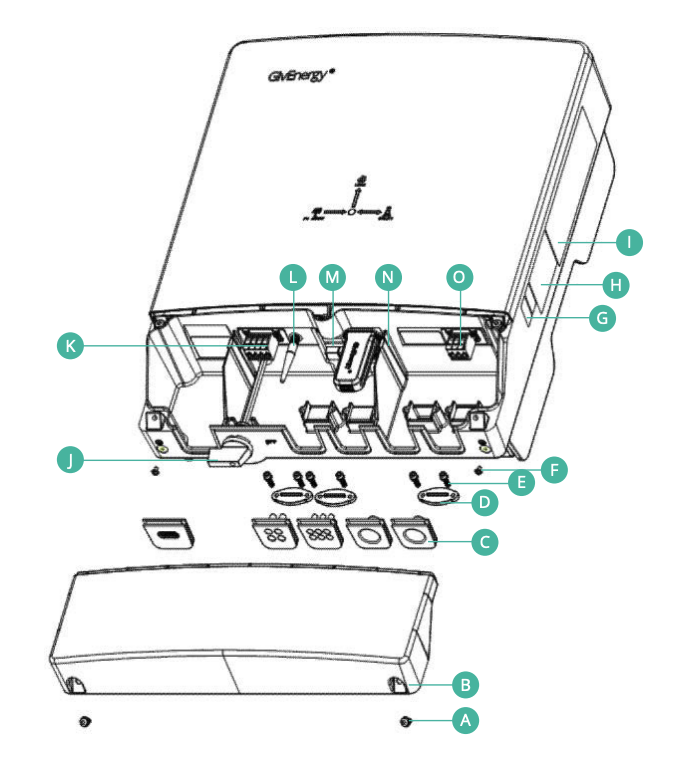

System Overview

A - 2 hexagon socket screws, M6x14

B - Wiring chamber

C - Wire sealing ring

D - Fixed wire

E - 8 internal hexagonal screws, M5x18

F - 2 Phillips screws, M4x8

G - Inverter serial and WIFI serial number

H - Warning signs label

I - Specification label

J - PV input switch

K - PV input terminals

L - Built in WiFi antenna

M - Signal connection: CT,BMS,METER,LAN,CAN,DRM,PARALLEL

N - AC supply terminals

O - External WIFI or 4G Module (USB Port)
