Overview

The GEM630MCT is a three-phase energy meter used across GivEnergy high-voltage and commercial systems. It measures import, export, and load across all three phases using external current-transformer (CT) clamps.


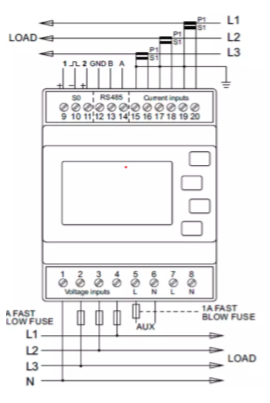

Required Components

  • GEM630MCT meter

  • 3 × split-core CT clamps (white & black leads)

  • RS485 twisted-pair communication cable

  • 6 A MCB supply

Key Features

  • Measurement Type: 3-phase 4-wire (3P4W)

  • Accuracy: Class 1 / B (IEC 62053-21)

  • CT Range: 1 A / 5 A secondary, configurable ratio up to 9999 : 1

  • Voltage Range: 173–500 V AC

  • Communication: RS485 (Modbus RTU, TXA+/TXB–)

  • Indicators: Telephone icon confirms Modbus communication

  • Mounting: DIN-rail, powered via 6 A MCB supply

Typical Applications

Use Case

Compatible Systems

Main grid import/export

6 kW – 20 kW HV Inverters

Net-metering and load balancing

All-in-One + Gateway

Multi-phase PV systems

Commercial & industrial installations

Required Components

  • GEM630MCT meter

  • 3 × split-core CT clamps (white & black leads)

  • RS485 twisted-pair communication cable

  • 6 A MCB supply
