EV charger wiring into Giv-Gateway

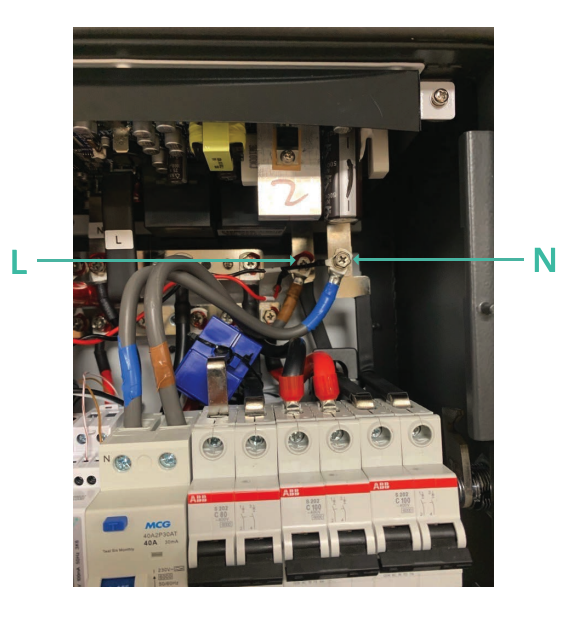

The GivEnergy EV charger connects directly from 32A RCD to the grid busbar screw terminals highlighted below:

Ensure grid breaker is isolated before commencing work 6mm single or larger required from RCD to busbar 32A 30mA RCD Type A

If using confing C, power for EVC ID01 meter can be taken from load side of RCD 6mm supply to EV
